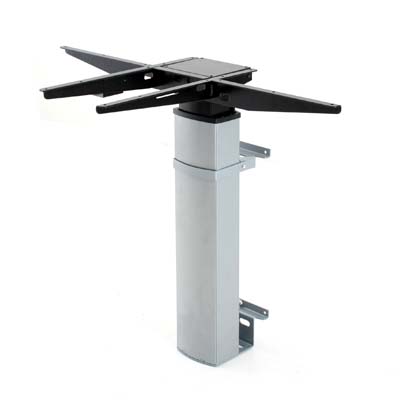

Series 501-19 Wall, Silver / Item no.: 501-19 9SW £ 422 ex VAT

501-19 WALL is delivered with tabletop support and control panel
— ready for plugin.

You can mount either of the two top support brackets.

Bracket A supports the following top sizes:
 Minimum top measurements: 95 x 55 cm
 Maximum top measurements: 140 x 100 cm

Bracket B supports the following top sizes:
 Minimum top measurements: 55 x 25 cm
 Maximum top measurements: 100 x 60 cm

• Frame peak lifting load is 80 kg
• Height range (if mounted at floor level) is 66-118 cm

Please note that some wall-types might need additional brackets
to even out the load.

The 79 mm between column and wall allows for mounting a cable tray.

Download assembly instruction

Download drawings:
Tech-draw_501-19_XXW.pdf (2 pages) / 
501-19_Wall.dwg (drawing 01) / 501-19_Wall.dwg (drawing 02)

Important! Download both DWG files.

£ 422 ex VAT
